Founded in 1986, is committed to providing quality oilfield hoses worldwide.
Our parther-Jingbo has 30 years’ experience in the oilfield hoses area and is the leading manufacturer of rotary drilling hose, choke & kill hose, BOP hose and hammer union.
As China’s first API authorized manufacturer of oilfield hoses, Jingbo has got the certificates of API Spec 7K-0376, API Spec 16C-0275, API Spec 16D-0109, API Spec Q1-2085 and API ISO9001-2008.
Jingbo sets up advanced laboratory and is committed continuously to improving production technology. The development of new formula improves the production efficiency and product quality.
Jingbo has strong quality control team and tests each batch of material.
A 100% full inspection of finished hoses before delivery is made to provide quality products.
Each hose is tested at 2 times of working pressure.
The test graph and certificate are available for each hose.

Jingbo exports hoses to more than 20 countries. Such as the USA, Russia, Brazil, Argentina, Iran, UAE, etc. We are ready to be your long term reliable partner of oilfield hoses.

Let’s Numbers Talk
Years in Business
0 +
Happy Customers
0 +
Skilled workers
0
Worldwide countries
0 +

Drilling hose

Well Test Hoses

Drilling hoses

Drilling Hoses

Our partner is a global leader in the design, manufacture and supply of high pressure hoses. We have over 50 years of experience in metallic reinforced bonded elastomer hoses and has been the first company to obtain certification for all three governing industry standards: API 7K, 16C and 17K standard. We have since built up a broad portfolio for a variety of drilling applications, such as flexible choke & kill Lines, rotary & vibrator hoses, managed pressure drilling hoses to meet the needs of both onshore & offshore drillers and distributors.

Sustainable Benefits

Low environmental risk: The bonded couplings of the drilling hoses are designed to be the strongest part of the assembly, resulting in exceptionally high safety & reliability compared to the crimped or swaged couplings.

Customized for the application: Our designed and tested hoses for each drilling application, ensuring lower material and manufacturing carbon footprint.

Long service life: Bonded drilling hoses are designed for a long service life and hence are a sustainable choice: minimizing needs for replacement.

Applications

  • Flexible choke & kill lines
  • Rotary & vibrator hoses
  • Cementing hoses
  • Mud booster hoses
  • Hydraulic conduit hoses
  • Managed pressure drilling (MPD) hoses
  • Underbalanced drilling hoses
  • Subsea LMRP hoses
  • Fireshield 5000 blowout preventer control hoses
  • Riser tensioner hoses
  • Drill string compensator hoses

Our partner is a global leader in the design, manufacture and supply of high pressure hoses. We have over 37 years of experience in metallic reinforced bonded elastomer hoses and has been the first company to obtain certification for all three governing industry standards: API 7K, 16C and 17K standard. We have since built up a broad portfolio for a variety of drilling applications, such as flexible choke & kill Lines, rotary & vibrator hoses, managed pressure drilling hoses to meet the needs of both onshore & offshore drillers and distributors.

General construction of a High Pressure Drilling Hose

The high pressure hoses are a bonded construction comprising steel and elastomeric materials. The principal characteristic of bonded construction is the build-up of individual layers in the flexible hose wall which are then combined into one unit through vulcanisation. Hose assemblies are manufactured as a single bonded unit to specified lengths where the couplings are a chemically bonded integral part of the hose.




  1. Stainless steel interlock stripwound tube

    Protects the polymer lining from mechanical damage, prevents blistering in case of high pressure gas service and decompression with vacuum service, supports the wall of the flexible hose. This layer is optional and present only for rough bore hoses, such as for flexible choke & kill lines with TauroFlon™ liner.

  1. Polymer lining

    Fluid barrier of the flexible line. Protects the hose construction from corrosive and abrasive effects of the conveyed medium. The thickness of lining depends on the internal pressure, the inside diameter and the conveyed medium. The lining material is selected to withstand chemical and heat effects of drilling mud, well effluents, cement slurry, hydraulic fluid or whatever substance is conveyed through the hose.

  1. Textile plies

    To distribute the forces of internal pressure.

  1. Stiffening spiral (not shown in the picture)

    To protect the hose against collapse under axial pulling force and/or as a result of external pressure. Prevents kinking even in sharp bends.

  1. Elastomeric cushion plies

    To ensure adhesive bonding between different plies.

  1. High strength steel cable reinforcements

    These are the most important load-bearing elements, they determine internal pressure resistance. The cables are either zinc or brass coated to provide exceptional corrosion resistance.

  1. Gas leading plies

    To allow diffused gases to migrate to venting points.

  1. Fire resistant plies

    Optional layer, protects the hose in case of exposure to flame at 704°C (1300°F) for at least 30 minutes.

  1. UV resistant elastomeric cover

    Protect the flexible hose line from impact, abrasion, weather, seawater, oil, etc.

Products range

Flexible Choke & Kill Lines with TauroFlon™ Liner
API Spec. 16C up to FSL 3​

Flexible lines used for high temperature fluid circulation into and out of the wellbore to control well pressure.

Rotary & Vibrator Hoses with Bonded Coupling
API Spec. 7K FSL 1 - FSL 2

Drilling hoses with bonded coupling used for conveying mud to the top drive and between the mud pump and standpipe.

Flexible Choke & Kill Lines with PA Liner
API Spec. 16C up to FSL 3​

Flexible lines used for fluid circulation into and out of the wellbore to control well pressure.

Rotary & Vibrator Hoses with Swaged Coupling
API 7K Spec. FSL 1 - FSL 2

Drilling hoses with swaged coupling used for conveying mud to the top drive and between the mud pump and standpipe.

Rotary & Vibrator Hoses for High Temperature Drilling
API 7K Spec. FSL 1 - FSL 2

Drilling hoses used for conveying high temperature mud to the top drive and between the mud pump and standpipe.

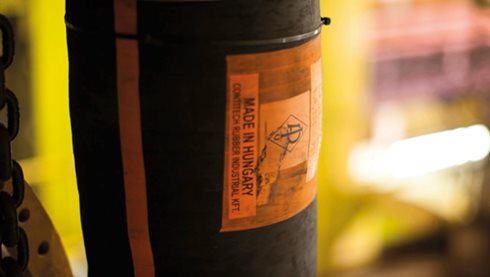

Cementing Hoses
API Spec. 7K FSL 0

High pressure flexible hoses used for conveying slurry to cement wellbore casing. Connects the cementing pump manifold to the cementing head.

Rotary & Vibrator Hoses for Arctic Drilling
API 7K Spec. FSL 1 - FSL 2

Drilling hoses used for conveying mud to the top drive and between the mud pump and standpipe. Designed for extreme low working temperatures.

Mud Booster Hoses
API Spec. 7K FSL1 - FSL 2 & API SPec. 16C - up to FSL 3

High pressure hoses providing additional fluid supply to the LMRP to assist mud return up the marine riser.

Hydraulic Conduit Hoses
API Spec. 7K FSL1 - FSL 2 & API Spec. 16C - up to FSL 3

High pressure hoses conveying hydraulic power to the subsea blowout preventer.

Underbalanced Drilling Hoses
API Spec. 7K FSL 1

Rotary hoses connecting to the top drive with special lining for underbalanced air, foam or mist drilling.

Fireshield 5000 Blowout Preventer Control Hoses

High pressure hoses conveying hydraulic power to the surface blowout preventer.

Drilling hose catalog

High Pressure Flexible Lines Drilling Applications

Well Service Hoses

Well Service Hoses

Our partner is a global leader in the design, manufacture and supply of high pressure hoses. We have over 50 years of experience in metallic reinforced bonded elastomer hoses and has been the first company to obtain certification for all three governing industry standards: API 7K, 16C and 17K standard. We have since built up a broad portfolio for a variety of well service applications, such as well test, onshore and offshore well stimulation and burner boom hoses to meet the needs of both onshore & offshore service providers.

Sustainable Benefits

Low environmental risk: The bonded couplings of the well service hoses are designed to be the strongest part of the assembly, resulting in exceptionally high safety & reliability. Continental onshore well stimulation hoses significantly decrease the risk of fluid spills compared to the traditional steel irons, swivels and elbows.

Long service life: Our onshore well stimulation hoses last considerably longer than the traditional steel piping in the erosive application, hence they are a more sustainable choice: minimizing needs for replacement. Additionally, they extends service life of adjacent equipment, piping and valves due to reduced turbulence in the flow.

Applications

  • Well test
  • Offshore well stimulation, intervention & acidizing
  • Onshore well stimulation
  • Burner & flare boom

General construction of a High Pressure Well Service Hose

The high pressure hoses are a bonded construction comprising steel and elastomeric materials. The principal characteristic of bonded construction is the build-up of individual layers in the flexible hose wall which are then combined into one unit through vulcanisation. Hose assemblies are manufactured as a single bonded unit to specified lengths where the couplings are a chemically bonded integral part of the hose.




  1. Stainless steel interlock stripwound tube

    Protects the polymer lining from mechanical damage, prevents blistering in case of high pressure gas service and decompression with vacuum service, supports the wall of the flexible hose. This layer is optional and present only for rough bore hoses, such as for well test hoses.

  1. Polymer lining

    Protects the hose construction from corrosive and abrasive effects of the conveyed medium. The thickness of lining depends on the internal pressure, the inside diameter and the conveyed medium. The lining material is selected to withstand chemical and heat effects of well effluents, well stimulation fluid, acids or whatever substance is conveyed through the hose.

  1. Textile plies

    To distribute the forces of internal pressure.

  1. Stiffening spiral (not shown in the picture)

    To protect the hose against collapse under axial pulling force and/or as a result of external pressure. Prevents kinking even in sharp bends.

  1. Elastomeric cushion plies

    To ensure adhesive bonding between different plies.

  1. High strength steel cable reinforcements

    These are the most important load-bearing elements, they determine internal pressure resistance. The cables are either zinc or brass coated to provide exceptional corrosion resistance.

  1. Gas leading plies

    To allow diffused gases to migrate to venting points.

  1. Fire resistant plies

    Optional layer, protects the hose in case of exposure to flame at 704°C (1300°F) for at least 30 minutes.

  1. UV resistant elastomeric cover

    Protect the flexible hose line from impact, abrasion, weather, seawater, oil, etc.

  2. Outer stainless steel stripwound protection

    Optional layer, protect the hose against external mechanical damage, material AISI 316L. For different types of available external protection, contact your Continental representative.

Well Test Hoses
API Spec. 17K & API Spec. 16C - up to FSL 3

High pressure flexible lines used for testing oil and gas wells.

Offshore Well Stimulation, Intervention & Acidizing Hoses
API Spec. 16C - up to FSL 3

High pressure hoses used for conveying chemicals to enhance offshore well performance.

Onshore Well Stimulation Hoses

High pressure hoses used to transport slickwater to enhance onshore shale well performance.

Continental is committed to become carbon neutral for the Onshore Well Stimulation Hose Product Line with respect to their materials, manufacturing, distribution and end of life emissions, through carbon offsetting.

Burner/Flare Boom Hoses
API Spec. 17K

Flexible lines used for conveying hydrocarbons to the flare stack.
